CCD Camera

Axiocam Family Camera Technology from ZEISS In contrast to digital cameras for photography or industrial inspection, many aspects of the microscope cameras are optimized to meet specific requirements of applications in science, research and documentation.


As each application has very specific requirements, there is a wide range of different digital camera models to choose from. Different pixel sizes, for example, regulate camera sensitivity and spatial resolution. Lower pixel count enables higher frame rates and larger sensors offer better coverage of the field of view.

For maximum image quality, some Axiocam cameras feature low-noise electronic designs with cooled image sensors. Our color cameras excel through the best color rendition with a very high range of resolvable intensity levels. Monochrome cameras are the best choice for imaging of fluorescent samples at low light intensities with an extended sensitivity spectrum.

For easy documentation, some digital cameras can record images either completely without a computer, or through a connected PC, laptop or iPad running the ZEISS Labscope software. All our microscope cameras are fully supported in our ZEN software environment, offering fast live image display and easy-to-use user interface.


Product Models

# Image Model Name Detail

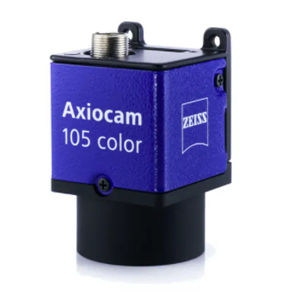

Axiocam105 Small, No-Frills Microscope Camera With its compact design, it makes quick and efficient work of your daily documentation needs. Experience a high data transfer rate with the USB 3.0 port for processing high-resolution 5-megapixel color images. Offering an exposure time range of 100 μs to 2 s and a live frame rate of up to 33 images per second, the camera allows you to be well prepared to cover multiple tasks. Document your results quickly and conveniently. With its attractive price-performance ratio, you can also expand the capability of your fluorescence imaging system with color imaging. Axiocam 105 color is ideal as a secondary camera on fluorescence microscopes that are traditionally equipped with monochrome cameras. The camera’s small form factor also lends itself well to environments with limited space.

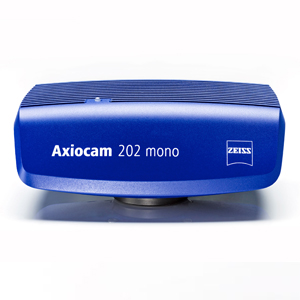

Axiocam 202 mono For Routine Fluorescence Documentation With smart microscopy, digital documentation has never been easier. Axiocam 202 mono is your smart 2 megapixel microscope camera for digital documentation of fluorescent samples.

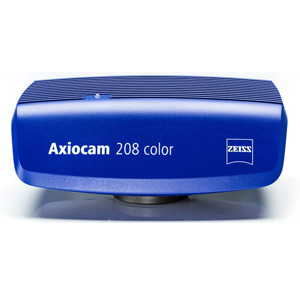

Axiocam 208 Color For Smart Digital Documentation With smart microscopy, digital documentation of your samples has never been easier. Axiocam 208 color is your 8 Megapixel color microscope camera for Smart Microscopy. This CMOS camera is suitable for education, fast digital documentation and all your routine applications.

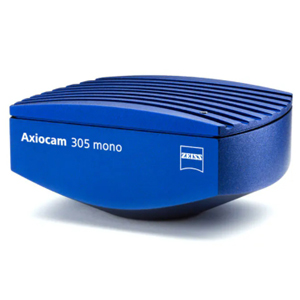

Axiocam 305 mono/color ZEISS Axiocam 305 Your Fast 5 Megapixel Microscope Camera for Routine Fluorescence Applications Enjoy High Resolution Imaging at Fast Speeds Axiocam 305 is a 5 megapixel CMOS microscope camera. You acquire images with various high contrasts and intensities thanks to its high dynamic range. The dark homogenous background helps you see even the finest structural details. And it's a really fast camera, acquiring up to 36 frames per second at full resolution.

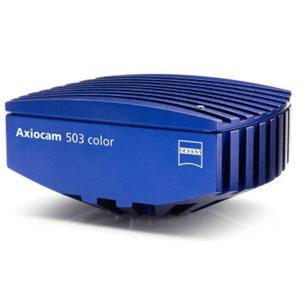

Axiocam 503 mono/color ZEISS Axiocam 503 color Image Large Sample Areas - Fast, in True Color, and High-Resolution Your 3 Megapixel Microscope Camera For Fast Image Acquisition in Research Labs This fast 2.8 megapixel scientific grade color camera allows high resolution live images and time-lapse recordings at video speed. Axiocam 503 color brings the convenience of fast color HDTV cameras to the digital domain, including all the advantages of extended parameter control and the image quality you expect from scientific camera products.
Axiocam 506 mono/color ZEISS Axiocam 506 color 6 Megapixel Microscope Camera for Fast Imaging in True Color High-Resolution Images of Large Sample Areas This high quality 6 megapixel color camera offers you an amazingly fast live image and acquisition speed despite its large pixel count and the very large 16 mm diagonal field of view. This makes it the camera of choice whenever large sample areas have to be screened and recorded by taking many image tiles repeatedly in a minimum amount of time due to reduced number of tile positions.

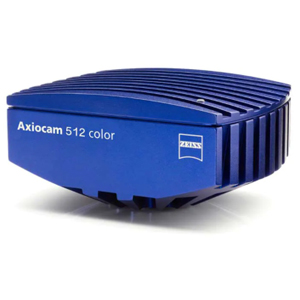

Axiocam 512 mono/color ZEISS Axiocam 512 color Acquire Large Object Fields with Low Magnification and High Aperture Objectives without Stitching Your 12 Megapixel Microscope Camera Fast, in True Color, and High Resolution This 12 megapixel scientific grade color camera has a 1” (16 mm diagonal) CCD sensor. Given its large sensor size combined with small pixel sizes, you are able to acquire large object fields with low magnification and high aperture objectives without stitching. You can zoom into the digital image and still see the finest details of your sample. The USB 3.0 interface delivers an excellent live image at high acquisition speeds.

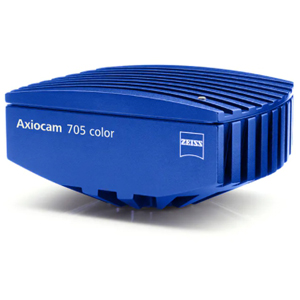

Axiocam 705 mono/color ZEISS Axiocam 705 color Your Fast 5 Megapixel Microscope Camera True Color Imaging in High Resolution Axiocam 705 color is your flexible 5 megapixel color camera for demanding microscopy applications. Its sensor strikes the perfect balance of speed and resolution. Delivering more than 60 frames per second at full 5 megapixel resolution, this microscope camera will capture even the most dynamic processes without compromising the image resolution. Subsampling or sub-region readout accelerates your acquisition speed to hundreds of frames per second.
Axiocam 712 mono/color ZEISS Axiocam 712 color Your All-round 12 Megapixel Microscope Camera True Color Acquisition of Large Specimen Areas in High Resolution Your Axiocam 712 color combines a large image sensor, small pixel size, precise color rendition and fast imaging speed in one versatile and flexible color microscope camera. You profit from a 12 megapixel color CMOS sensor which delivers more than 20 frames per second in a large field of view. You can now acquire large specimen regions quickly and with uncompromised image quality.
